Tool-Flo

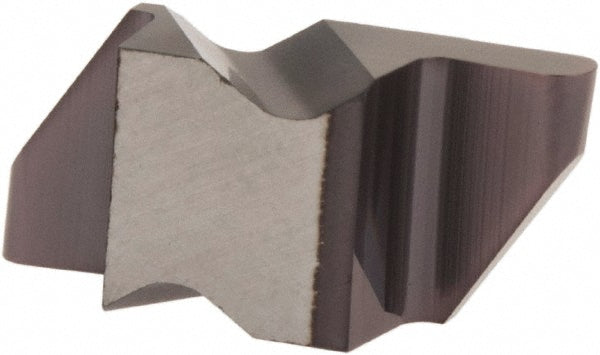

Carbide Insert, Grade AC3, AlTiN - Tool-Flo 594225LAC3A
MFR# 594225LAC3ACat# FLR-4125LSeries Flo-Lock
$29.84List $38.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 594225LAC3A is a carbide indexable insert, grade AC3, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius in1/8
Cutting height0.4530
Cutting width0.2500
Full radiusYes
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4094
Insert styleFLR
Insert thickness0.2550
Lead angle0
Manufacturers catalog numberFLR-4125L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeDecimal Inch
Multi use toolNo
RakeNeutral
