FLR-4125R Carbide Insert, Grade AC3, AlTiN - Tool-Flo 594225RAC3A
MFR# 594225RAC3AISO/ANSI# FLR-4125RCat# FLR-4125RSeries Flo-Lock
$29.84List $38.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description

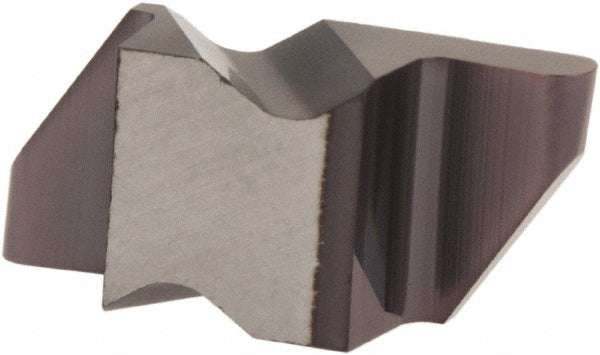

The Tool-Flo 594225RAC3A is a FLR-4125R carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius in1/8
Cutting height0.4530
Cutting width0.2500
Full radiusYes
Insert handRight Hand
Insert materialCarbide
Insert seat size4
Insert size4125
Insert size code4125
Insert styleFLR
Insert thickness0.2550
Iso codeFLR-4125R
Lead angle0
Manufacturers catalog numberFLR-4125R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeDecimal Inch
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
