Tool-Flo
Carbide Insert, Grade AC3 - Tool-Flo 602600RAC3R
MFR# 602600RAC3RSeries Flo-Lock
$17.40List $22.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
Description

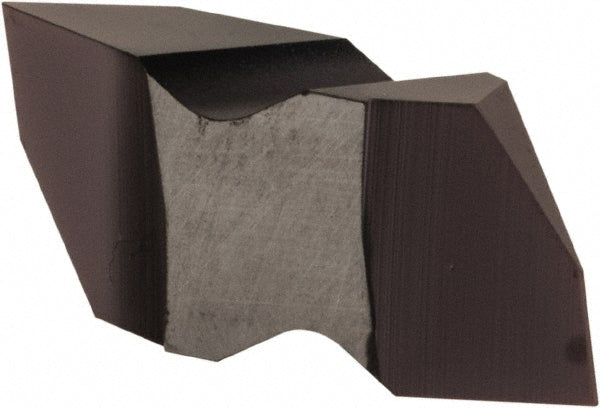

The Tool-Flo 602600RAC3R is a carbide indexable insert, grade AC3.
Specifications
Coating processPVD
External pitch8-36 TPI
Finish coatingCoated
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleFLT
Internal pitch7-20 TPI
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0050
Minimum corner radius0.0030
Thickness0.1500in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.0750
