Carbide Insert, Grade AC50 - Tool-Flo 602600RAC50C
MFR# 602600RAC50CSeries Flo-Lock
$22.21List $27.98
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 5 — minimum order 5
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialCarbide
Description

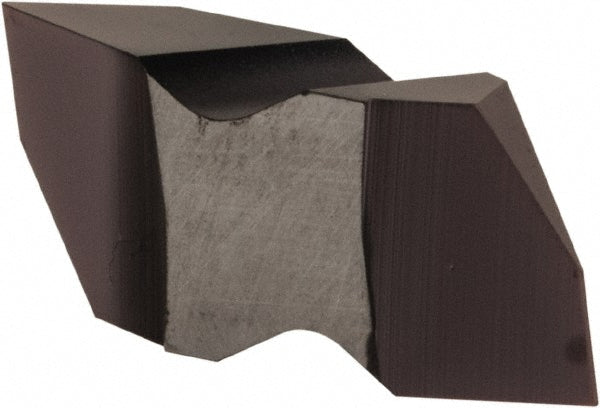

The Tool-Flo 602600RAC50C is a carbide indexable insert, grade AC50.
Specifications
Coating processPVD
External pitch8-36 TPI
Finish coatingCoated
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleFLT
Internal pitch7-20 TPI
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0050
Minimum corner radius0.0030
Thickness0.15
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.0750
