Tool-Flo

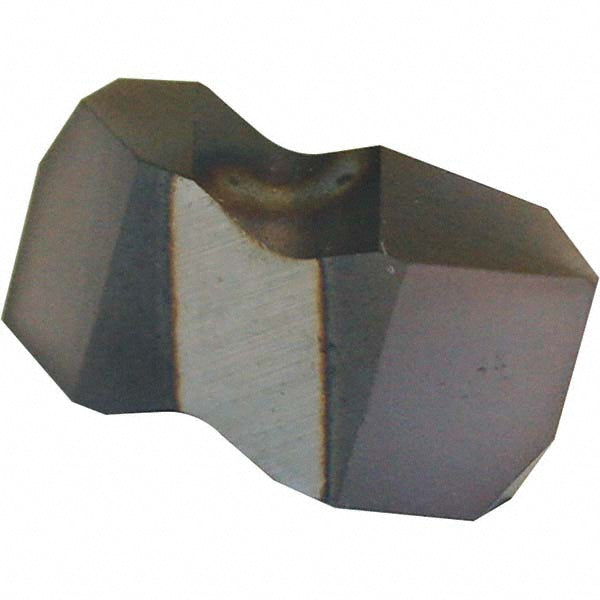

Carbide Insert, Grade GP50C - Tool-Flo 603655LN4C
MFR# 603655LN4CSeries Flo-Lock
$23.14List $29.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50C
MaterialCarbide
Description
The Tool-Flo 603655LN4C is a carbide indexable insert, grade GP50C.
Specifications
Coating processPVD
External pitch6-20 TPI
Finish coatingTitanium Nitride
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleFLT
Internal pitch5-12 TPI
Manufacturer gradeGP50C
Material gradeMedium Grain
Maximum corner radius0.0080
Minimum corner radius0.0050
Thickness0.1950in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.0980
