Tool-Flo

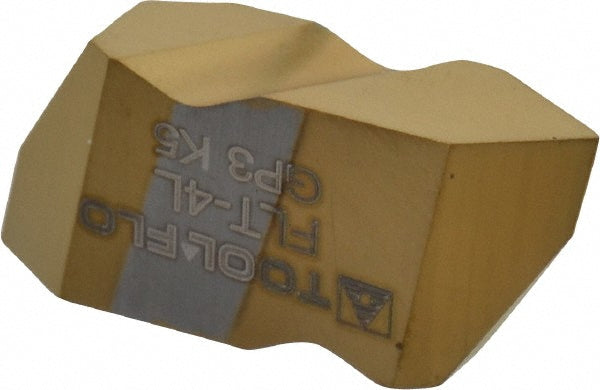

Carbide Insert, Grade GP3 - Tool-Flo 604600LJ5A
MFR# 604600LJ5ASeries Flo-Lock
$26.08List $33.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialCarbide
Description
The Tool-Flo 604600LJ5A is a carbide indexable insert, grade GP3.
Specifications
ChipbreakerCB
Coating processPVD
External pitch4-20 TPI
Finish coatingTitanium Nitride
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size4
Insert styleFLT
Internal pitch4-12 TPI
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0080
Minimum corner radius0.0050
Thickness0.2550in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.1280
