Tool-Flo
Carbide Insert, Grade AC3 - Tool-Flo 612600RAC3R
MFR# 612600RAC3RSeries Flo-Lock
$23.85List $30.06
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
Description

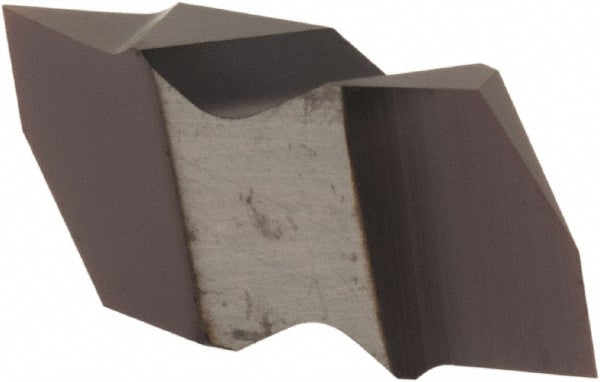

The Tool-Flo 612600RAC3R is a carbide indexable insert, grade AC3.
Specifications
Coating processPVD
External pitch14-44 TPI
Finish coatingCoated
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleFTLK
Internal pitch12-24 TPI
Manufacturer gradeAC3
Maximum corner radius0.0040
Minimum corner radius0.0020
Thickness0.1500in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.1100
