Tool-Flo
Carbide Insert, Grade AC50E - Tool-Flo 614800RAC50E
MFR# 614800RAC50ESeries Flo-Lock
$30.48List $39.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50E
MaterialCarbide
Description

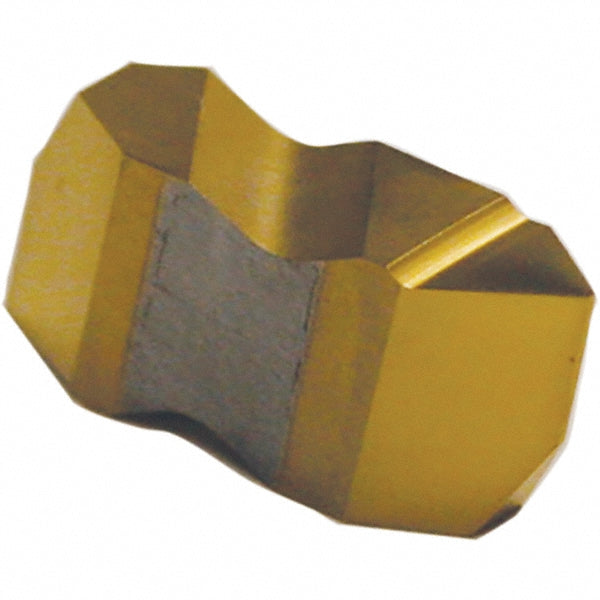

The Tool-Flo 614800RAC50E is a carbide indexable insert, grade AC50E.
Specifications
Coating processPVD
External pitch4-20 TPI
Finish coatingCoated
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleFLTP
Internal pitch4-12 TPI
Manufacturer gradeAC50E
Maximum corner radius0.0080
Minimum corner radius0.0050
Thickness0.255
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.1280
