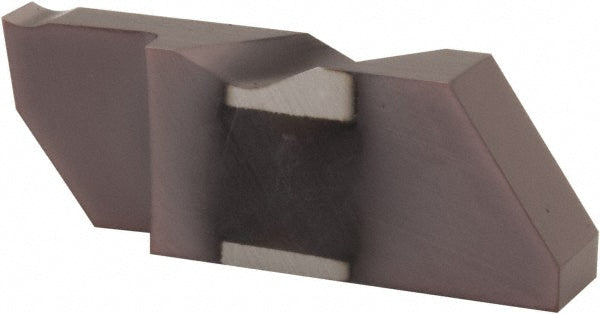

FLGD-3125L-CB Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 6335125PLAC3R
MFR# 6335125PLAC3RISO/ANSI# FLGD-3125L-CBCat# FLGD-3125L-CBSeries Flo-Lock
$22.74List $29.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 6335125PLAC3R is a FLGD-3125L-CB solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.2500
Cutting width0.1250
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3125CB
Insert styleFLGD
Iso codeFLGD-3125L-CB
Lead angle3
Manufacturers catalog numberFLGD-3125L-CB
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Rake angle0.00
Single or double endSingle
