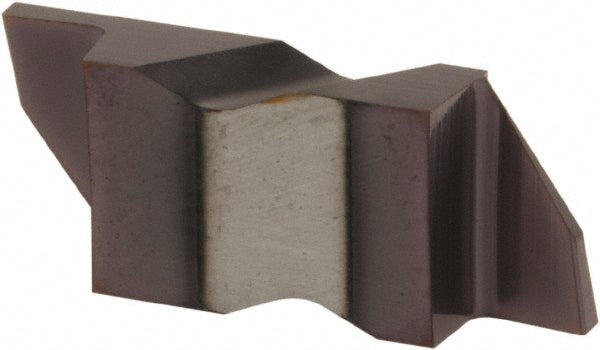

FLGD-3125L-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 6335125PLAC50C

Tool-Flo

FLGD-3125L-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 6335125PLAC50C

MFR# 6335125PLAC50CISO/ANSI# FLGD-3125L-CBCat# FLGD-3125L-CBSeries Flo-Lock

$23.14List $29.16 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 6335125PLAC50C is a FLGD-3125L-CB solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.

Specifications

Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1250
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3125
Insert size code3125CB
Insert styleFLGD
Iso codeFLGD-3125L-CB
Lead angle0
Manufacturers catalog numberFLGD-3125L-CB
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Single or double endSingle
