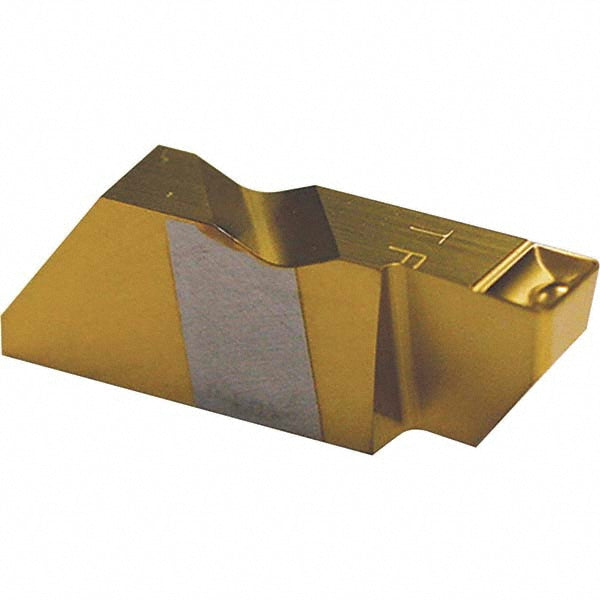

FLFD3125LCB Solid Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 6338125PLAC3R
MFR# 6338125PLAC3RISO/ANSI# FLFD3125LCBCat# FLFD-3125L-CBSeries Face Grooving
$22.40List $28.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 6338125PLAC3R is a FLFD3125LCB solid carbide indexable insert, grade AC3R, AlTiN coated. Suited for cast iron, steel.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1250
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3125
Insert size code3125CB
Insert styleFLFD
Insert thickness0.1950
Iso codeFLFD3125LCB
Manufacturers catalog numberFLFD-3125L-CB
Manufacturer gradeAC3R
Maximum corner radius0.0100
Maximum depth of cut0.2700
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle12.00
Single or double endSingle
