1/4" IC Carbide Insert, Grade GP3R, TiN - Tool-Flo 64151J5R
MFR# 64151J5RSeries FLPL
$15.54List $19.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeGP3R
MaterialCarbide
CoatingTiN
Description

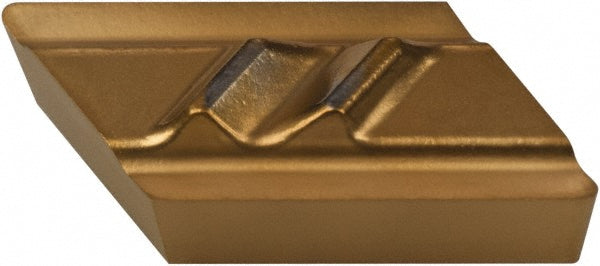

The Tool-Flo 64151J5R is a carbide indexable insert, grade GP3R, TiN coated.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0150
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.2500
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert size code51
Insert styleFLPL
Manufacturer gradeGP3R
Material gradeMicrograin
Maximum depth of cut0.3610
Msc manufacturer numberFLPL-51 GP3R
Number of cutting edges2
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.3750
StandardsFLPL-51 GP3R
Thickness in1/8
Width in1/4
