Tool-Flo

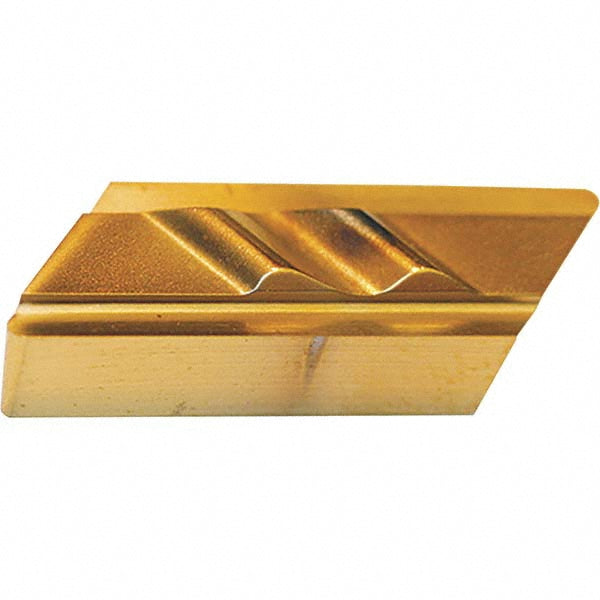

3/8" IC Carbide Insert, Grade GP50C, TiN - Tool-Flo 642131FN4C
MFR# 642131FN4CSeries FLPR
$18.49List $23.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeGP50C
MaterialCarbide
CoatingTiN
Description
The Tool-Flo 642131FN4C is a carbide indexable insert, grade GP50C, TiN coated. Suited for steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0150
Hole diameter0.0000
Included angle55
Inscribed circle in3/8
Insert handRight Hand
Insert height0.3750
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert size code131F
Insert styleFLPR
Manufacturer gradeGP50C
Material gradeC5; C6
Maximum depth of cut0.5340
Msc manufacturer numberFLPR-131F GP50C
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.5000
StandardsFLPR-131F GP50C
Thickness0.1880
Width in3/8
