Tool-Flo
1/4" IC Carbide Insert, Grade GP50C, TiN - Tool-Flo 642505N4C
MFR# 642505N4CSeries FLPR
$15.54List $19.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeGP50C
MaterialCarbide
CoatingTiN
Description

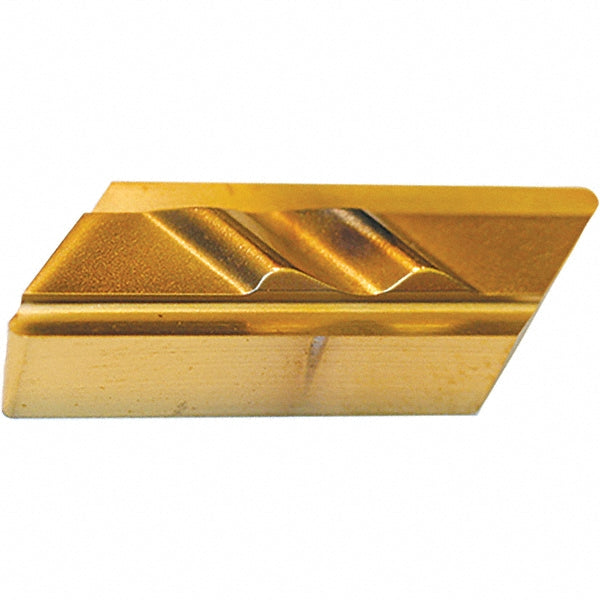

The Tool-Flo 642505N4C is a carbide indexable insert, grade GP50C, TiN coated. Suited for steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0050
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handRight Hand
Insert height0.2500
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert size code50.5
Insert styleFLPR
Manufacturer gradeGP50C
Material gradeC5; C6
Maximum depth of cut0.3700
Msc manufacturer numberFLPR-50.5 GP50C
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.3750
StandardsFLPR-50.5 GP50C
Thickness in1/8
Width in1/4
