Tool-Flo

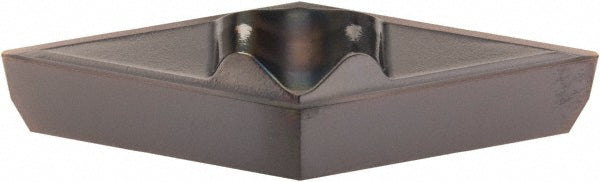

3/8" IC Carbide Insert, Grade AC3R, TiAlN - Tool-Flo 644332AC3R
MFR# 644332AC3RSeries VPGR
$27.00List $34.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC3R
MaterialCarbide
CoatingTiAlN
Description
The Tool-Flo 644332AC3R is a carbide indexable insert, grade AC3R, TiAlN coated.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handRight Hand
Insert height0.1880
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert size code332
Insert styleVPGR
Manufacturer gradeAC3R
Material gradeC2; C3
Msc manufacturer numberVPGR-332 AC3R
Number of cutting edges2
RakePositive
Relief angle8
ShapeDiamond
StandardsVPGR-332 AC3R
Thickness0.1880
Width in3/8
