Tool-Flo

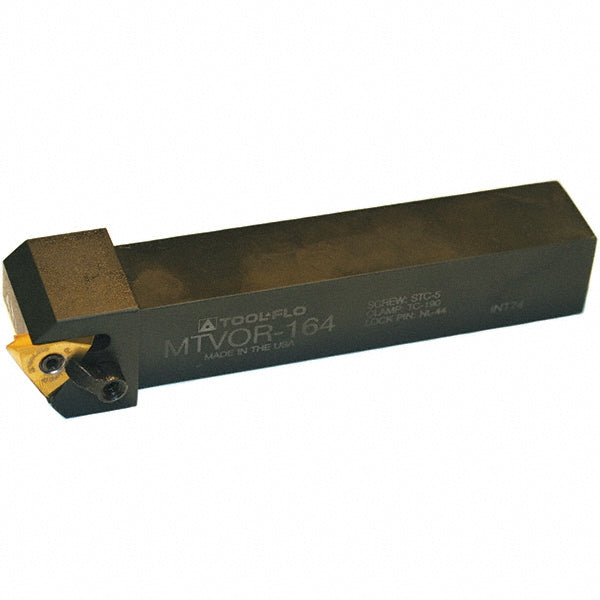

Indexable Threading Toolholders - Tool-Flo 96001656
MFR# 96001656Series On-Edge
$114.97List $135.29
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tool-Flo 96001656 indexable threading toolholders. Series On-Edge.
Specifications
Back of bar to cutting edge1.2500
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length1.2300
Insert compatibilityT.MA/C 43
Insert holding methodClamp & Pin
Insert inscribed circle0.5000
Maximum depth of cut0.2300
Multi use toolYes
Overall length in6
Shank height in1
Shank width diameter in1
Thread typeExternal
Toolholder styleMTVO
