Tool-Flo

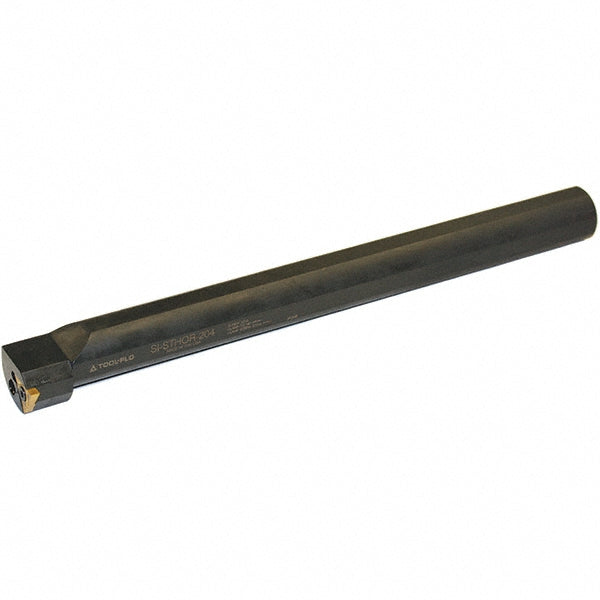

Indexable Threading Toolholders - Tool-Flo 97601648
MFR# 97601648Series On-Edge
$327.91List $385.89
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tool-Flo 97601648 indexable threading toolholders. Series On-Edge.
Specifications
Center to cutting edge0.6870
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Insert compatibilityT.MC 32
Insert holding methodClamp & Screw
Insert inscribed circle0.3750
Maximum depth of cut0.1200
Minimum bore diameter1.3830
Multi use toolYes
Overall length in14
Shank height1.0000
Shank width diameter1.0000
Thread typeInternal
Toolholder styleSI-STHO
