Tool-Flo

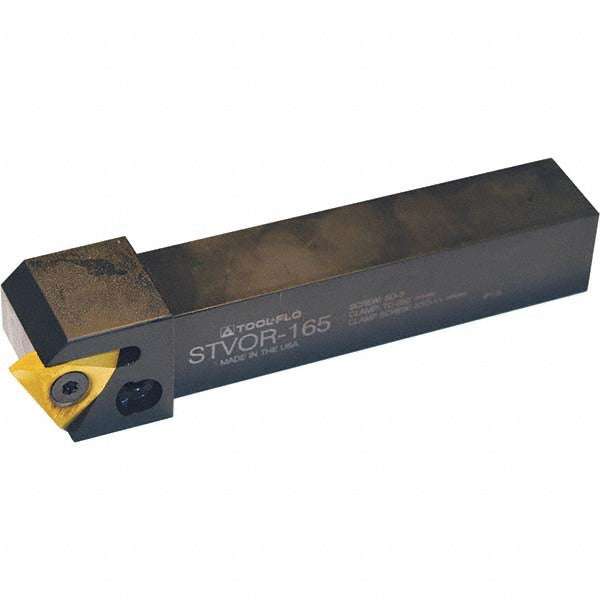

Indexable Threading Toolholders - Tool-Flo 98002056D
MFR# 98002056DSeries On-Edge
$124.70
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tool-Flo 98002056D indexable threading toolholders. Series On-Edge.
Specifications
Back of bar to cutting edge1.5000
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length1.2300
Insert compatibilityT.MC 43
Insert holding methodClamp & Pin
Insert inscribed circle0.5000
Maximum depth of cut0.2300
Multi use toolYes
Overall length in7
Shank height in1-1/4
Shank width diameter in1-1/4
Thread typeExternal
Toolholder styleSTVO
