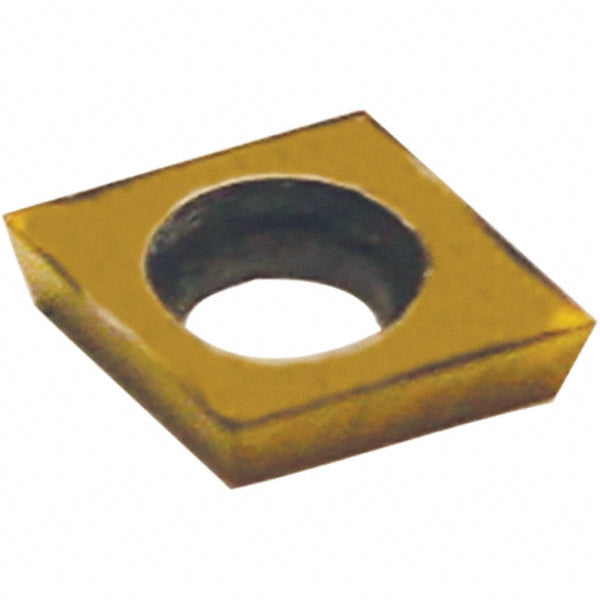

Diamond Solid Carbide Insert, Grade GP22R, TiN - Tool-Flo 9BCD505O3R

Tool-Flo

Diamond Solid Carbide Insert, Grade GP22R, TiN - Tool-Flo 9BCD505O3R

MFR# 9BCD505O3RSeries Bantam

$12.99List $16.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeGP22R
MaterialSolid Carbide
CoatingTiN

Description

The Tool-Flo 9BCD505O3R is a solid carbide indexable insert, grade GP22R, TiN coated. Suited for non-ferrous metal, stainless steel, steel, superalloy.

Specifications

Coating finishTiN
Coating processPVD
Corner radius0.0070
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code505
Insert styleCDCD
Length0.1560
Manufacturer gradeGP22R
Material gradeMicrograin
Msc manufacturer numberCDCD-505
Primary workpiece materialNon-Ferrous Metal; Stainless Steel; Steel; Superalloy
Relief angle15
Secondary workpiece materialCast Iron
ShapeDiamond
Thickness0.0400
Width0.1560
