Tool-Flo

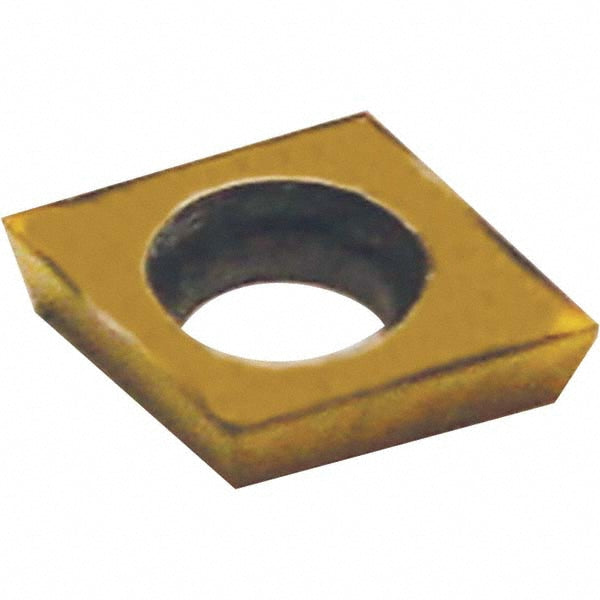

Diamond Solid Carbide Insert, Grade GP4R, TiN - Tool-Flo 9BCD51KPR
MFR# 9BCD51KPRSeries Bantam
$12.99List $16.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeGP4R
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 9BCD51KPR is a solid carbide indexable insert, grade GP4R, TiN coated. Suited for cast iron.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0150
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code51
Insert styleCDCD
Length0.1560
Manufacturer gradeGP4R
Msc manufacturer numberCDCD-51
Primary workpiece materialCast Iron
Relief angle15
ShapeDiamond
Thickness0.0400
Width0.1560
