Tool-Flo
TNMA43NGCW.094 Solid Carbide Insert, Grade GP50C, TiN - Tool-Flo C3909400N4C
MFR# C3909400N4CISO/ANSI# TNMA43NGCW.094Cat# TNMA 43 NGC W.094Series On-Edge
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50C
MaterialSolid Carbide
CoatingTiN
Description

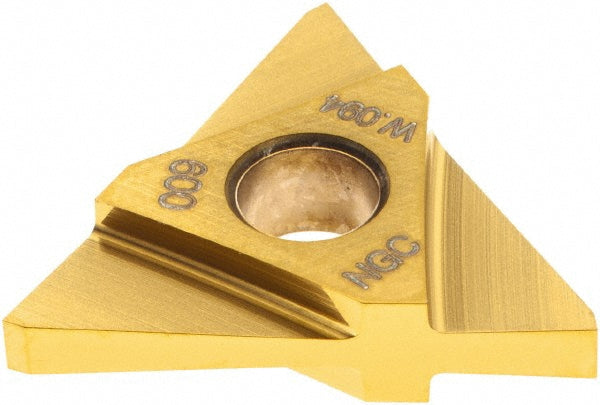

The Tool-Flo C3909400N4C is a TNMA43NGCW.094 solid carbide indexable insert, grade GP50C, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.0940
Full radiusNo
Inscribed circle0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size43
Insert size code43NGCW094
Insert styleTNMA
Insert thickness0.1890
Iso codeTNMA43NGCW.094
Manufacturers catalog numberTNMA 43 NGC W.094
Manufacturer gradeGP50C
Maximum depth of cut0.2150
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Primary workpiece materialSteel
Secondary workpiece materialSteel
