Tool-Flo

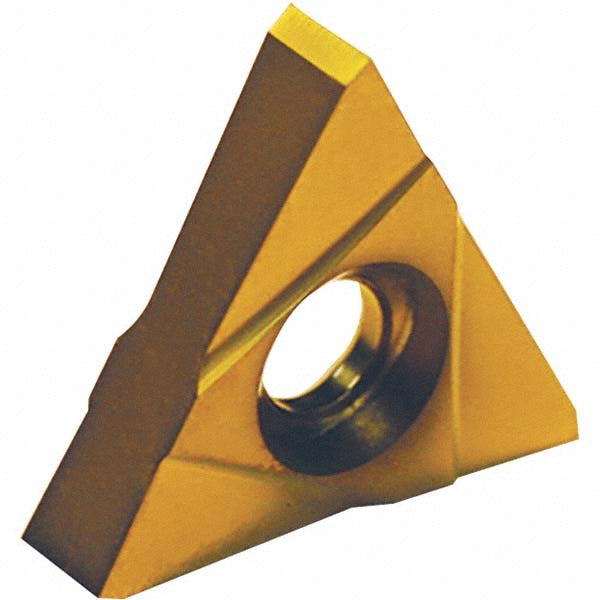

TNMC54NGW.250 Carbide Insert, Grade GP50E, TiN - Tool-Flo C5325000N4E
MFR# C5325000N4EISO/ANSI# TNMC54NGW.250Cat# TNMC 54 NG W.250Series On-Edge
$25.56List $32.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50E
MaterialCarbide
CoatingTiN
Description
The Tool-Flo C5325000N4E is a TNMC54NGW.250 carbide indexable insert, grade GP50E, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.2500
Full radiusNo
Inscribed circle0.6250
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert size54
Insert size code54NGW250
Insert styleTNMC
Insert thickness0.2520
Iso codeTNMC54NGW.250
Manufacturers catalog numberTNMC 54 NG W.250
Manufacturer gradeGP50E
Maximum depth of cut0.2750
Maximum depth of cut range0.2000 to 0.3000
Measurement typeDecimal Inch
Multi use toolNo
Secondary workpiece materialSteel
