Tool-Flo

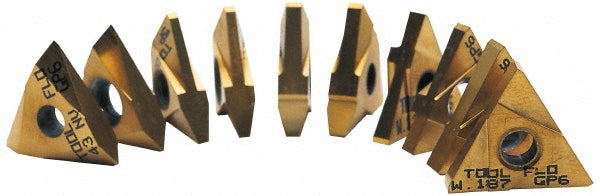

TNMA 32 NGR W.062 Solid Carbide Insert, Grade GP50, TiN - Tool-Flo R0806200N4C
MFR# R0806200N4CISO/ANSI# TNMA 32 NGR W.062Series On-Edge
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo R0806200N4C is a TNMA 32 NGR W.062 solid carbide indexable insert, grade GP50, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.0620
Full radiusNo
Gage diameter in3/8
Inscribed circle0.3750
Insert handRight Hand
Insert materialSolid Carbide
Insert size32
Insert size code32NGRW062
Insert styleTNMA
Iso codeTNMA 32 NGR W.062
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.1270
Primary workpiece materialSteel
RakePositive
Rake angle2.00
Secondary workpiece materialSteel
