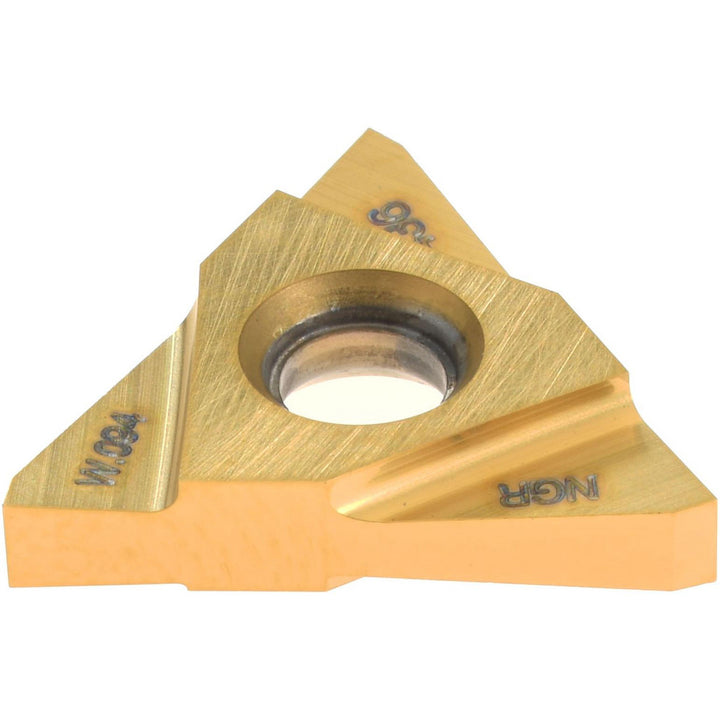

TNMC 32 NGR W.094 Solid Carbide Insert, Grade GP50, TiN - Tool-Flo R0909400N4C

Tool-Flo

TNMC 32 NGR W.094 Solid Carbide Insert, Grade GP50, TiN - Tool-Flo R0909400N4C

MFR# R0909400N4CISO/ANSI# TNMC 32 NGR W.094Series On-Edge

$17.34List $21.85 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeGP50
MaterialSolid Carbide
CoatingTiN

Description

The Tool-Flo R0909400N4C is a TNMC 32 NGR W.094 solid carbide indexable insert, grade GP50, TiN coated.

Specifications

Coating finishTiN
Coating processPVD
Cutting width0.0940
Full radiusNo
Gage diameter in3/8
Inscribed circle0.3750
Insert handRight Hand
Insert materialSolid Carbide
Insert size32
Insert size code32NGRW094
Insert styleTNMC
Iso codeTNMC 32 NGR W.094
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.1270
RakePositive
Rake angle2.00
Secondary workpiece materialSteel
