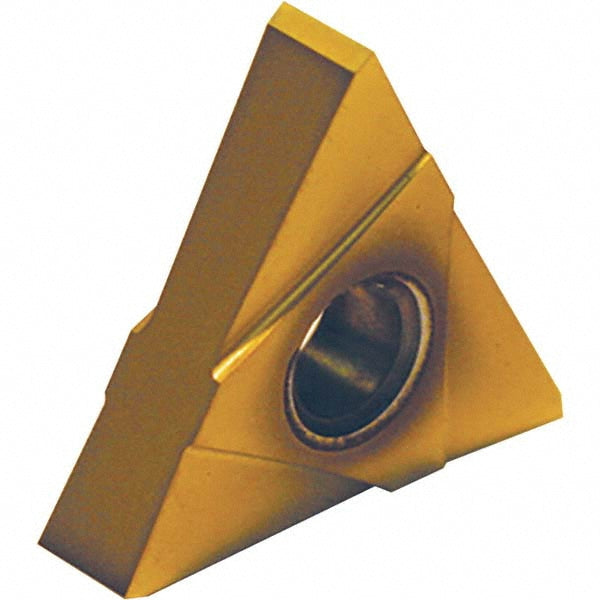

TNMA43NGRW.125 Carbide Insert, Grade AC50C, AlTiN - Tool-Flo R3912500AC50C

Tool-Flo

TNMA43NGRW.125 Carbide Insert, Grade AC50C, AlTiN - Tool-Flo R3912500AC50C

MFR# R3912500AC50CISO/ANSI# TNMA43NGRW.125Cat# TNMA 43 NGR W.125Series On-Edge

$27.51List $34.66 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC50C
MaterialCarbide
CoatingAlTiN

Description

The Tool-Flo R3912500AC50C is a TNMA43NGRW.125 carbide indexable insert, grade AC50C, AlTiN coated. Suited for steel.

Specifications

Coating finishAlTiN
Coating processPVD
Cutting width0.125
Full radiusNo
Inscribed circle0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size43
Insert size code43NGRW125
Insert styleTNMA
Insert thickness0.1890
Iso codeTNMA43NGRW.125
Manufacturers catalog numberTNMA 43 NGR W.125
Manufacturer gradeAC50C
Maximum depth of cut0.2150
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Primary workpiece materialSteel
Secondary workpiece materialSteel
