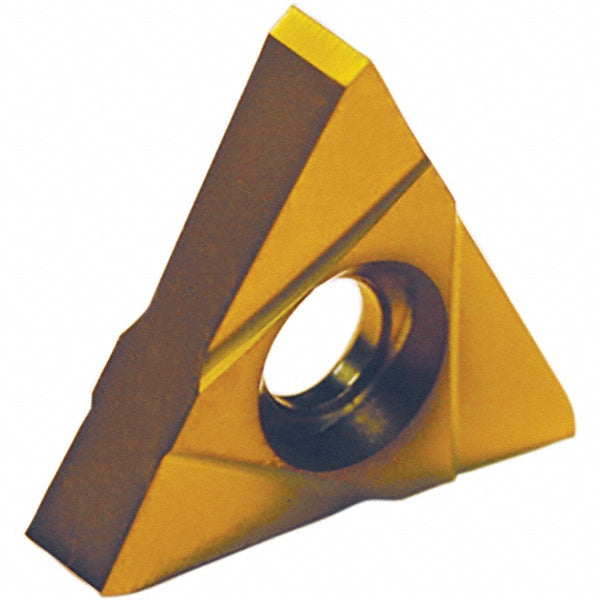

TNMC 43 NGR W.094 Carbide Insert, Grade GP50, TiN - Tool-Flo R4109400N4C
MFR# R4109400N4CISO/ANSI# TNMC 43 NGR W.094Cat# TNMC 43 NGR W.094Series On-Edge
$20.50List $25.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo R4109400N4C is a TNMC 43 NGR W.094 carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.094
Full radiusNo
Inscribed circle0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size43
Insert size code43NGRW094
Insert styleTNMC
Insert thickness0.1890
Iso codeTNMC 43 NGR W.094
Manufacturers catalog numberTNMC 43 NGR W.094
Manufacturer gradeGP50
Maximum depth of cut0.2150
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Secondary workpiece materialSteel
