Tool-Flo

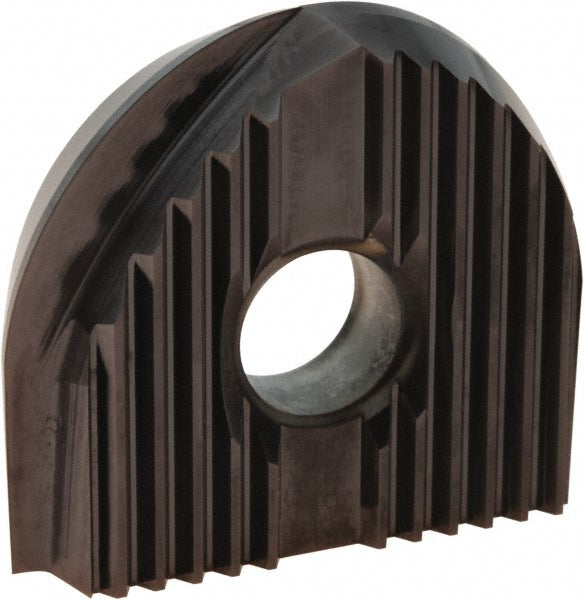

Ball Nose 1" IC Solid Carbide Insert, Grade ZS26D, AlTiN - Tool-Flo TBNR750PZS26D
MFR# TBNR750PZS26DCat# TBNR-750-P-ZS26DSeries TBNR
$52.15List $58.52
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeBall Nose
GradeZS26D
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo TBNR750PZS26D is a solid carbide indexable insert, grade ZS26D, AlTiN coated. Suited for steel, stainless steel, hard material, non-ferrous metal.
Specifications
Ansi codeTBNR-750-P-ZS26D
Chip breakerP
Coating finishAlTiN
Coating processPVD
Convex radius0.7500
Corner radius in3/8
Cutter series compatibilityTBNS-WT; TBNC-WT; TBNS-WS; TBNC-WS
Cutting edge styleHoned
Hole diameter0.2098
Inscribed circle in1
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size75
Insert size code750
Insert styleTBNR
Manufacturers catalog numberTBNR-750-P-ZS26D
Manufacturer gradeZS26D
Material applicationSteel; Stainless Steel; High-Temperature Alloy; Non-Ferrous Metal
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Hard Material; Non-Ferrous Metal
RakePositive
Rake angle5
Relief angle1.00
Single or double sided insertSingle
StandardsANSI
Thickness0.1960
Thickness range0.1850 to 0.2000
Width in3/4
