Tungaloy

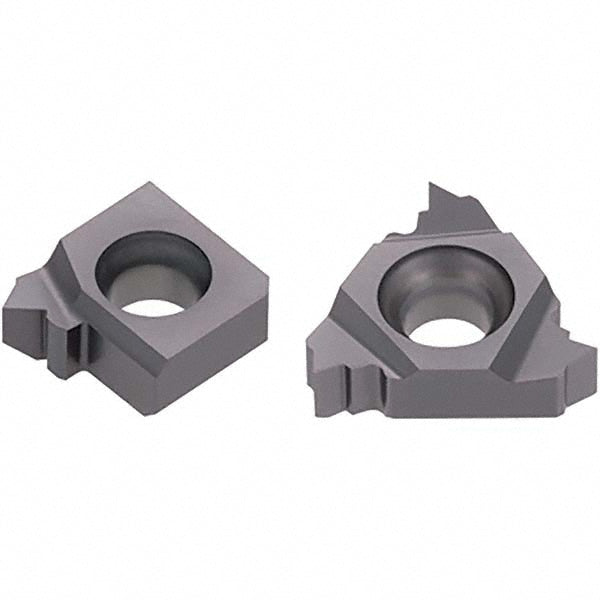

3/8" IC Carbide Insert, Grade AH725, TiAlN - Tungaloy 5901584
MFR# Tungaloy-5901584Series TAC; TungThread
$19.41List $24.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAH725
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 5901584 is a carbide indexable insert, grade AH725, TiAlN coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16IR
Manufacturer gradeAH725
Primary workpiece materialUniversal
StandardsISO
Thickness0.0590
Threads per inch11.5
Thread standardNPT
Thread typeInternal
