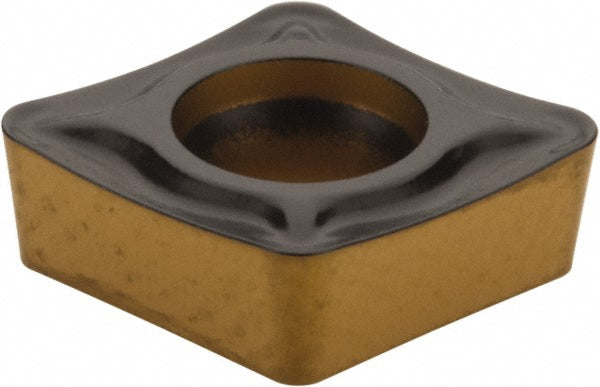

CNGP432-28 Carbide Insert, Grade AH905, AlTiN - Tungaloy 6717128
MFR# 6717128ISO/ANSI# CNGP 432-28Series CNGP
$27.26List $34.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeAH905
MaterialCarbide
CoatingAlTiN
Description
The Tungaloy 6717128 is a CNGP432-28 carbide indexable insert, grade AH905, AlTiN coated. Suited for superalloys & titanium.
Specifications
Chip breaker28
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGP 432-28
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGP432-28
Length range0.5000 - 0.6000
Manufacturers catalog number6717128
Manufacturer gradeAH905
Material gradeS01; S10
Maximum depth of cut0.1693
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
