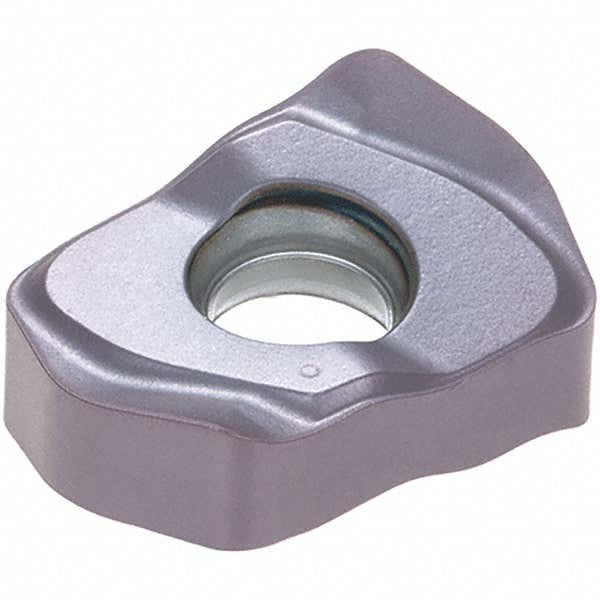

LNMX0405ZER-HJ AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6735305

Tungaloy

LNMX0405ZER-HJ AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6735305

MFR# 6735305ISO/ANSI# LNMX0405ZER-HJ AH3135Cat# LNMX0405ZER-HJSeries LNMX

$17.93List $22.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeAH3135
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6735305 is a LNMX0405ZER-HJ AH3135 solid carbide indexable insert, grade AH3135, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeLNMX0405ZER-HJ AH3135
Chip breakerHJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0512
Cutter series compatibilityEXLN; HXLN-M; TXLN
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.3230
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code0405
Insert styleLNMX
Iso codeLNMX0405ZER-HJ AH3135
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberLNMX0405ZER-HJ
Manufacturer gradeAH3135
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP30; M30
Maximum depth of cut0.0510
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsISO
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.3230
