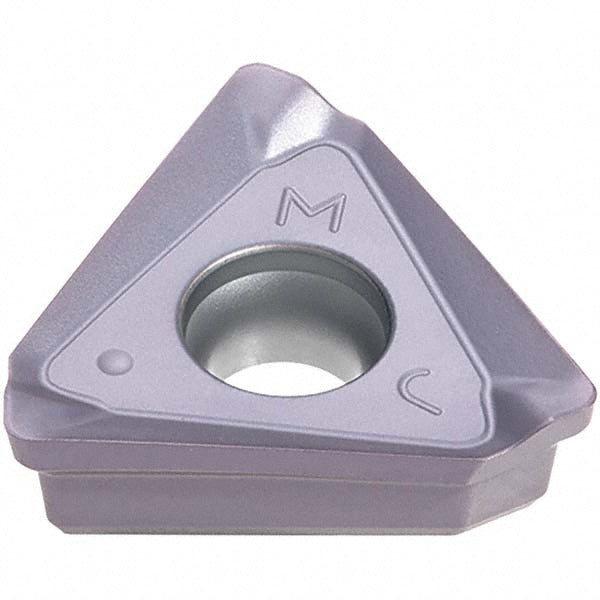

TCGT160608PDER-MJ AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6735587

Tungaloy

TCGT160608PDER-MJ AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6735587

MFR# 6735587ISO/ANSI# TCGT160608PDER-MJ AH3135Cat# TCGT160608PDER-MJSeries TCGT

$31.66List $39.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeAH3135
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6735587 is a TCGT160608PDER-MJ AH3135 solid carbide indexable insert, grade AH3135, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeTCGT160608PDER-MJ AH3135
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityLPTC16; TPTC16; EPTC16
Cutting edge styleHoned
Included angle degree60
Inscribed circle0.5390
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code160608
Insert styleTCGT
Iso codeTCGT160608PDER-MJ AH3135
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberTCGT160608PDER-MJ
Manufacturer gradeAH3135
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP30; M30
Maximum depth of cut0.6300
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsISO
Thickness0.2280
Thickness range0.2200 to 0.2350
Width0.6299
