Tungaloy

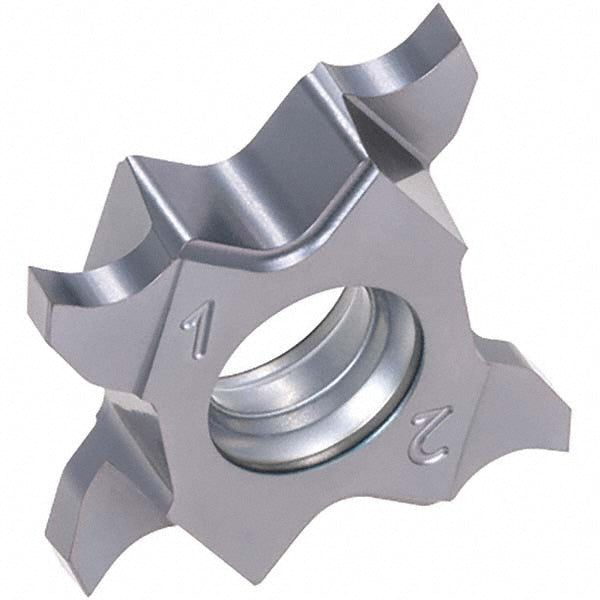

TCP18R033-005 Carbide Insert, Grade AH725, TiAlN - Tungaloy 6738970
MFR# 6738970ISO/ANSI# TCP18R033-005Cat# TCP18R033-005Series TetraMcut
$47.02List $60.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAH725
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6738970 is a TCP18R033-005 carbide indexable insert, grade AH725, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting height0.0310
Cutting width0.013
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size18R033
Insert size code18033005
Insert styleTCP
Insert thickness0.1570
Iso codeTCP18R033-005
Manufacturers catalog numberTCP18R033-005
Manufacturer gradeAH725
Maximum depth of cut0.0310
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Primary workpiece materialUniversal
Rake angle20
StandardsISO 13399
