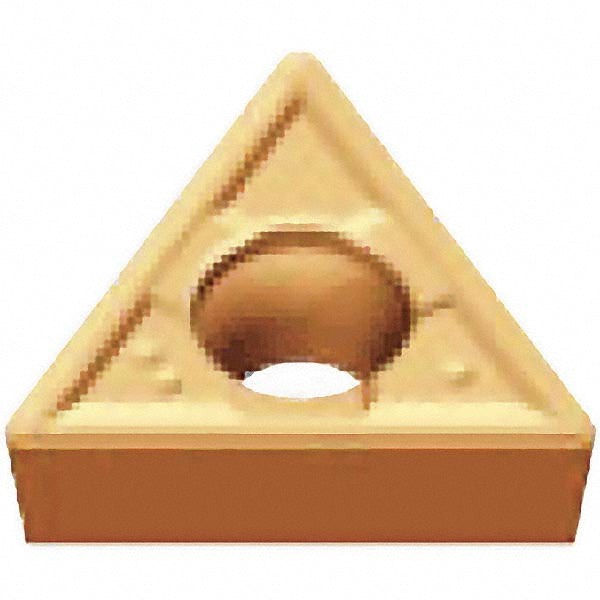

TCMT 16T308 Carbide Insert, Grade T515, TiCN - Tungaloy 6741316

Tungaloy

TCMT 16T308 Carbide Insert, Grade T515, TiCN - Tungaloy 6741316

MFR# 6741316ISO/ANSI# TCMT16T308Series TCMT-CM

$16.41List $21.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeT515
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6741316 is a TCMT 16T308 carbide indexable insert, grade T515, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeTCMT32.52
Ansi size code32.52
Chip breakerCM
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle60
Industry standard numberTCMT 32.52 CM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16T308
Iso insert codeTCMT16T308
Iso size code16T308
Length range0.6500 - 0.7000
Manufacturers catalog number6741316
Manufacturer gradeT515
Material gradeK10; K20
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
