Tungaloy
DGM4-030 AH7025 Cermet Insert, Grade AH7025, TiAlN - Tungaloy 6745865
MFR# 6745865ISO/ANSI# DGM4-030 AH7025Cat# DGM4-030 AH7025Series TungCut
$34.54List $44.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAH7025
MaterialCermet
CoatingTiAlN
Description

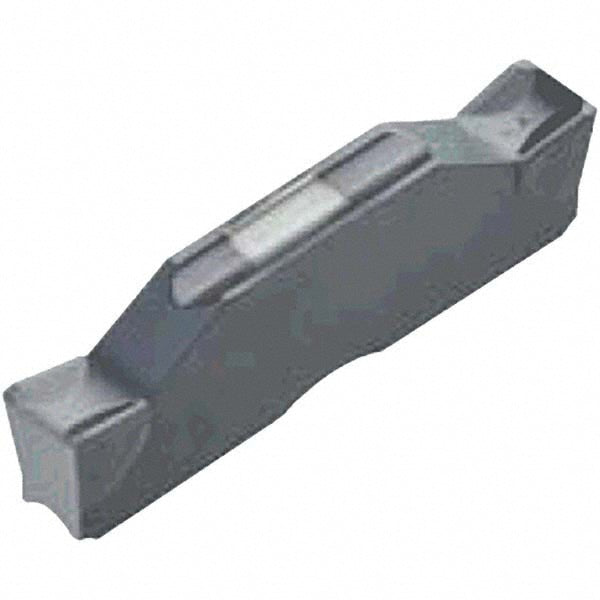

The Tungaloy 6745865 is a DGM4-030 AH7025 cermet indexable insert, grade AH7025, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0120
Cutting width0.1570
Insert handNeutral
Insert holding methodScrew
Insert materialCermet
Insert seat size4
Insert size4-030
Insert size code4030
Insert styleDGM
Iso codeDGM4-030 AH7025
Lead angle0
Manufacturers catalog numberDGM4-030 AH7025
Manufacturer gradeAH7025
Multi use toolYes
Overall length0.7870
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
StandardsISO 13399
