Tungaloy

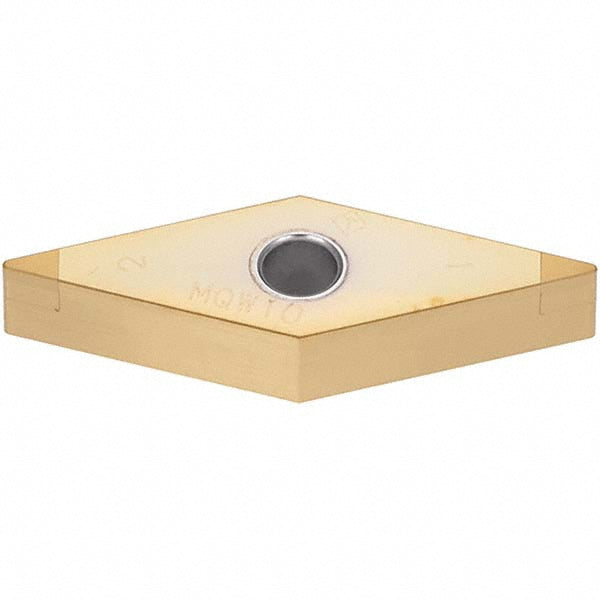

VNGA 331 PCBN Insert, Grade BXA20, TiAlN - Tungaloy 6749414
MFR# 6749414ISO/ANSI# VNGA160404Series 2QP-VNGA
$68.61List $78.45
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeBXA20
MaterialPCBN
CoatingTiAlN
Description
The Tungaloy 6749414 is a VNGA 331 pcbn indexable insert, grade BXA20, TiAlN coated. Suited for hard material.
Specifications
Ansi insert codeVNGA331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Industry standard number2QP-VNGA 331
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialPCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA 331
Iso insert codeVNGA160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number6749414
Manufacturer gradeBXA20
Material gradeMedium Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1220
Tolerance codeG
Width in3/8
Wiper edgeNo
