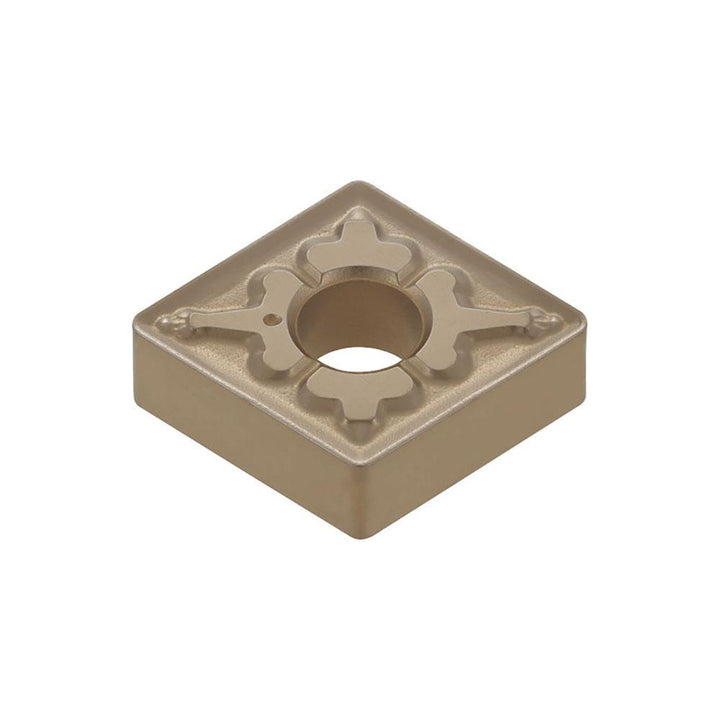

CNMG 120408 Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6750483

Tungaloy

CNMG 120408 Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6750483

MFR# 6750483ISO/ANSI# CNMG 432 TMSeries CNMG-TM

$16.10List $20.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeAH8015
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6750483 is a CNMG 120408 carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 TM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 120408
Length range0.5000 - 0.6000
Manufacturers catalog number6750483
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
