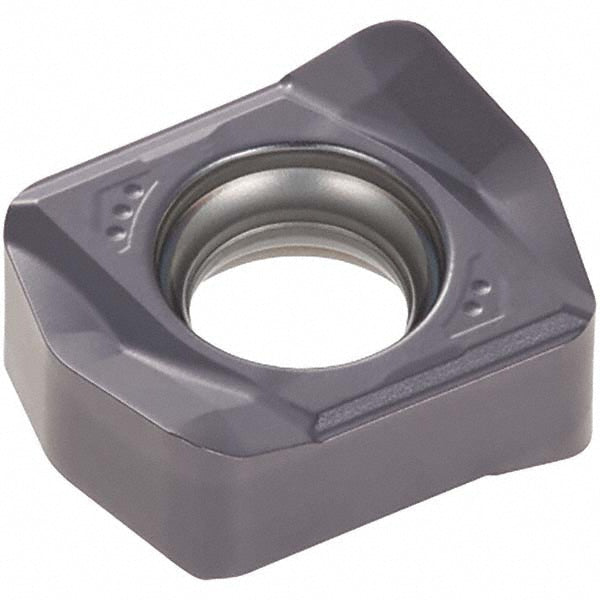

LNMU06X5ZER-ML AH8015 Solid Carbide Insert, Grade AH8015, AlTiN - Tungaloy 6761979

Tungaloy

LNMU06X5ZER-ML AH8015 Solid Carbide Insert, Grade AH8015, AlTiN - Tungaloy 6761979

MFR# 6761979ISO/ANSI# LNMU06X5ZER-ML AH8015Cat# LNMU06X5ZER-MLSeries LNMU

$23.69List $29.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeAH8015
MaterialSolid Carbide
CoatingAlTiN

Description

The Tungaloy 6761979 is a LNMU06X5ZER-ML AH8015 solid carbide indexable insert, grade AH8015, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeLNMU06X5ZER-ML AH8015
Chip breakerML
Coating finishAlTiN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityEXN06; TXN06
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code06X5
Insert styleLNMU
Iso codeLNMU06X5ZER-ML AH8015
Length0.2360
Length range0.0000 to 0.3200
Manufacturers catalog numberLNMU06X5ZER-ML
Manufacturer gradeAH8015
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeM10; S10
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsISO
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.4720
