Tungaloy
Carbide Insert, Grade AH9130, TiAlN - Tungaloy 6771237
MFR# 6771237Series DMP
$114.93List $147.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeAH9130
CoatingTiAlN
Description
The Tungaloy 6771237 is a carbide indexable insert, grade AH9130, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsGeneral Drilling; Holemaking
Coating finishTiAlN
Coating processPVD
Coolant throughNo

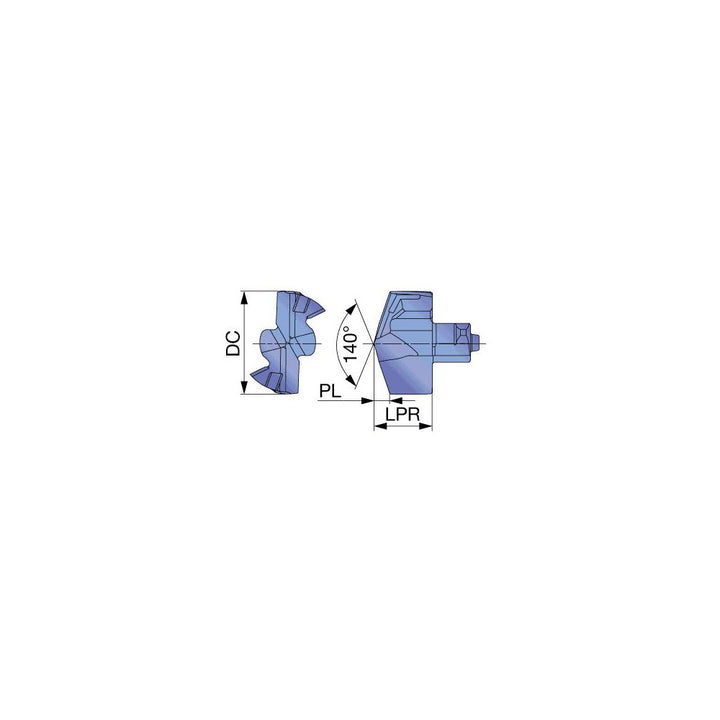

Cutting diameter (mm)16.00
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2612
Height (mm)9.00
Included angle degree140
Insert holding methodClamp
Insert seat size16
Iso numberDMP163
Manufacturer gradeAH9130
Material gradeP15; P35; M25; M35; K10; K25; S15; S30
Number of flutes2
Overall length projection0.3585
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleDMP
Tip materialSolid Carbide
