Tungaloy

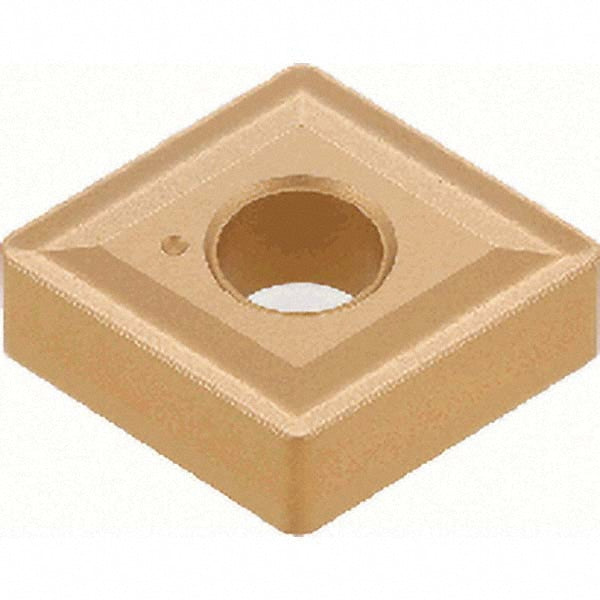

CNMG 432 Carbide Insert, Grade T9215, TiCN - Tungaloy 6772191
MFR# 6772191ISO/ANSI# CNMG 432Series CNMG
$17.81List $22.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6772191 is a CNMG 432 carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432
Length range0.5000 - 0.6000
Manufacturers catalog number6772191
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
