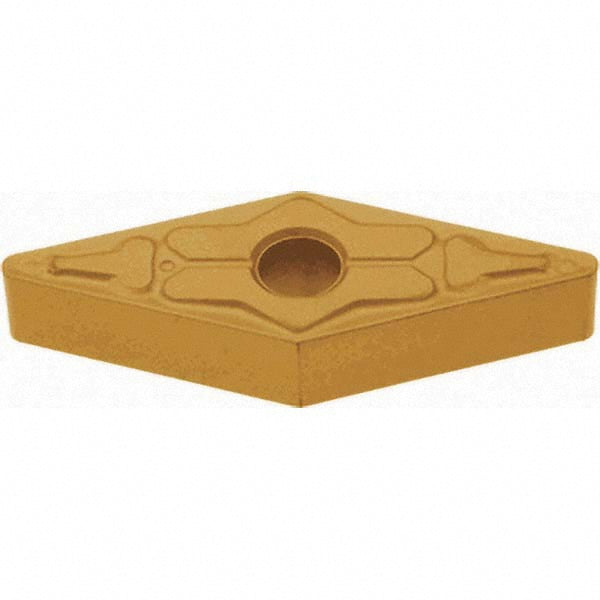

VNMG 332 TM Carbide Insert, Grade T9215, TiCN - Tungaloy 6772361

Tungaloy

VNMG 332 TM Carbide Insert, Grade T9215, TiCN - Tungaloy 6772361

MFR# 6772361ISO/ANSI# VNMG 332 TMSeries VNMG-TM

$23.42List $30.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772361 is a VNMG 332 TM carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG 332 TM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 332 TM
Length range0.7000 - 10.0000
Manufacturers catalog number6772361
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
