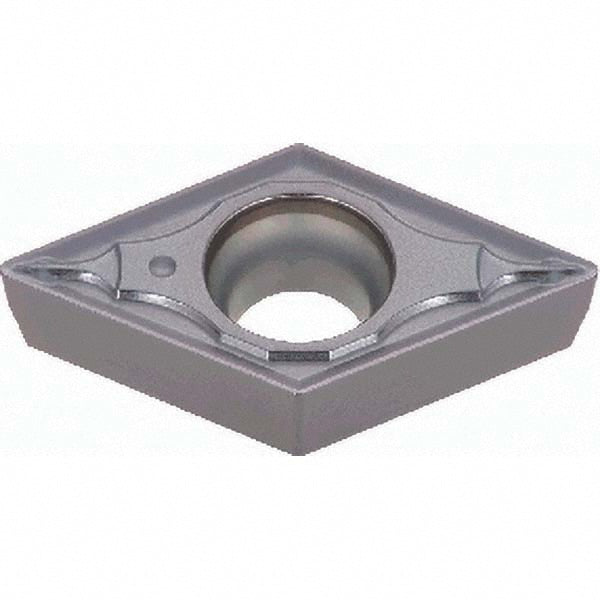

DCMT11T308-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772452

Tungaloy

DCMT11T308-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772452

MFR# 6772452ISO/ANSI# DCMT 32.52 PSSeries DCMT-PS

$19.41List $24.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772452 is a DCMT11T308-PS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerPS
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCMT 32.52 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308-PS
Length range0.7000 - 10.0000
Manufacturers catalog number6772452
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
