Tungaloy

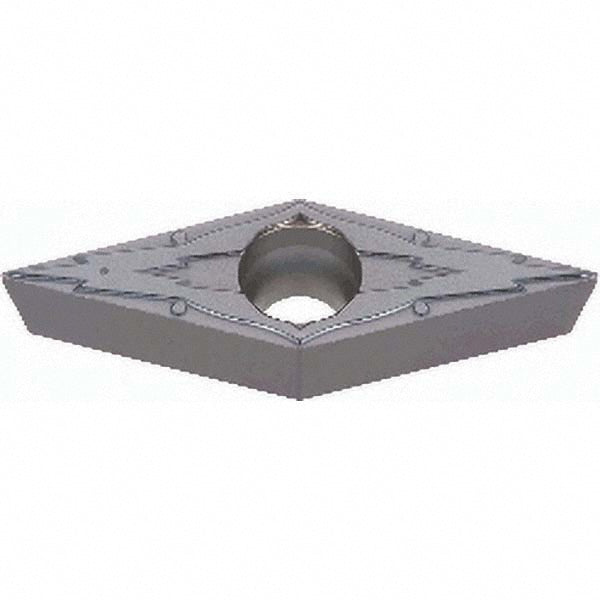

VBMT160404-PSF Carbide Insert, Grade T9215, TiCN - Tungaloy 6772481
MFR# 6772481ISO/ANSI# VBMT 331 PSFSeries VBMT-PSF
$31.22List $39.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6772481 is a VBMT160404-PSF carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPSF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVBMT 331 PSF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-PSF
Length range0.7000 - 10.0000
Manufacturers catalog number6772481
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle20
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
