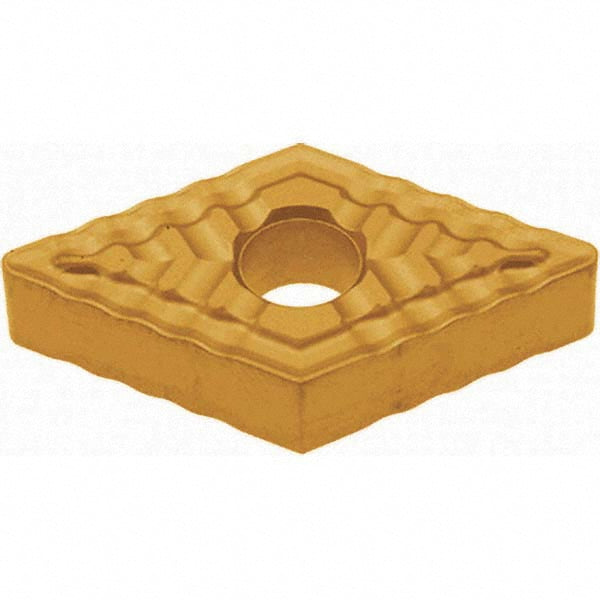

DNMG 432-27 Carbide Insert, Grade T9215, TiCN - Tungaloy 6773941

Tungaloy

DNMG 432-27 Carbide Insert, Grade T9215, TiCN - Tungaloy 6773941

MFR# 6773941ISO/ANSI# DNMG 432-27Series DNMG-27

$23.93List $30.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6773941 is a DNMG 432-27 carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breaker27
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 432-27
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-27
Length range0.7000 - 10.0000
Manufacturers catalog number6773941
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
