CPMT09T308-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6773962

Tungaloy

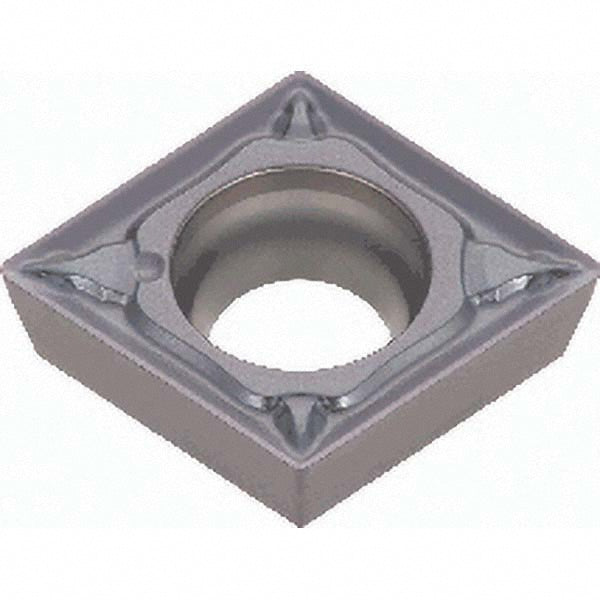

CPMT09T308-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6773962

MFR# 6773962ISO/ANSI# CPMT09T308Series CPMT-PS

$14.69List $18.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6773962 is a CPMT09T308-PS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeCPMT32.52
Ansi size code32.52
Chip breakerPS
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Industry standard numberCPMT 32.52 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308-PS
Iso insert codeCPMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number6773962
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
