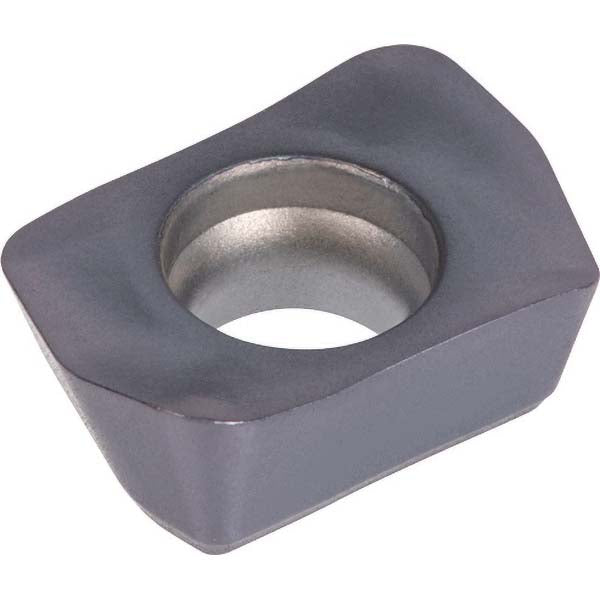

LSMT0202ZER-HM AH3225 Solid Carbide Insert, Grade AH3225, TiAlN - Tungaloy 6778688

Tungaloy

LSMT0202ZER-HM AH3225 Solid Carbide Insert, Grade AH3225, TiAlN - Tungaloy 6778688

MFR# 6778688ISO/ANSI# LSMT0202ZER-HM AH3225Cat# LSMT0202ZER-HMSeries LSMT

$14.04List $17.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeAH3225
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6778688 is a LSMT0202ZER-HM AH3225 solid carbide indexable insert, grade AH3225, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi codeLSMT0202ZER-HM AH3225
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityEXLS; HXLS-M
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1654
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size02
Insert size code0202
Insert styleLSMT
Iso codeLSMT0202ZER-HM AH3225
Length0.2520
Length range0.0000 to 0.3200
Manufacturers catalog numberLSMT0202ZER-HM
Manufacturer gradeAH3225
Material applicationSteel; Stainless Steel
Material gradeP20; M20
Maximum depth of cut0.0200
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Single or double sided insertSingle
StandardsISO
Thickness0.0910
Thickness range0.0000 to 0.1000
Width0.1654
