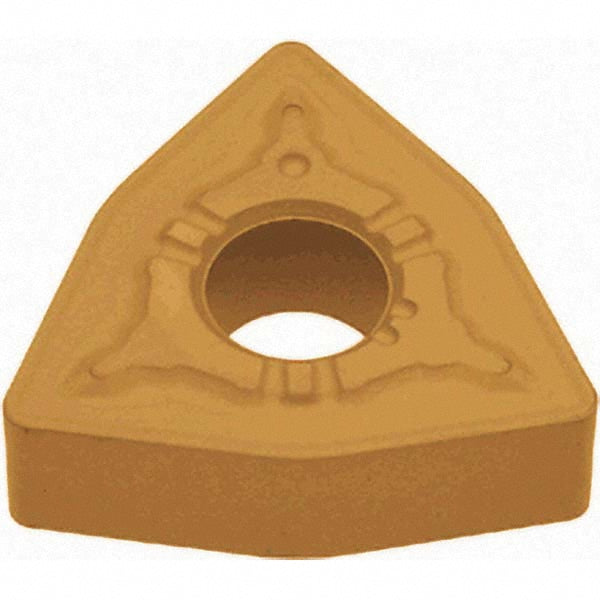

WNMG 432 TH Carbide Insert, Grade T9225, Titanium - Tungaloy 6780711

Tungaloy

WNMG 432 TH Carbide Insert, Grade T9225, Titanium - Tungaloy 6780711

MFR# 6780711ISO/ANSI# WNMG 432 THSeries WNMG-TH

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT9225
MaterialCarbide
CoatingTitanium

Description

The Tungaloy 6780711 is a WNMG 432 TH carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTH
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG 432 TH
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432 TH
Length range0.6500 - 0.7000
Manufacturers catalog number6780711
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6860in
Wiper edgeNo
