Tungaloy

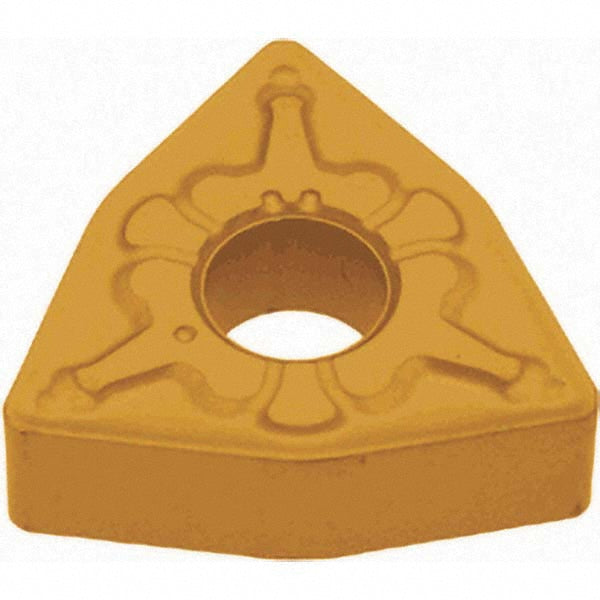

WNMG 431 TM Carbide Insert, Grade T9225, Titanium - Tungaloy 6780875
MFR# 6780875ISO/ANSI# WNMG 431 TMSeries WNMG-TM
$17.81List $22.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6780875 is a WNMG 431 TM carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG 431 TM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 431 TM
Length range0.6500 - 0.7000
Manufacturers catalog number6780875
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.686
Wiper edgeNo
