Tungaloy

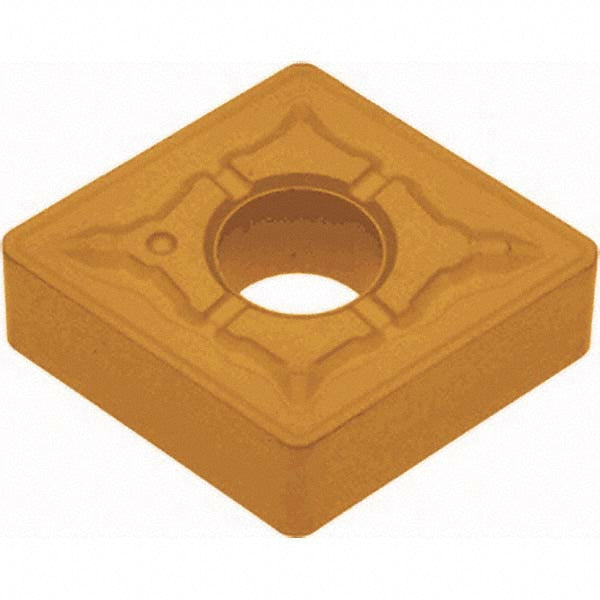

CNMG 433 TH Carbide Insert, Grade T9225, Titanium - Tungaloy 6780929
MFR# 6780929ISO/ANSI# CNMG120412Series CNMG-TH
$21.03List $26.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6780929 is a CNMG 433 TH carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerTH
Chip breaker operationRoughing; Medium Machining; Heavy Machining
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Industry standard numberCNMG 433 TH
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 433 TH
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number6780929
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
