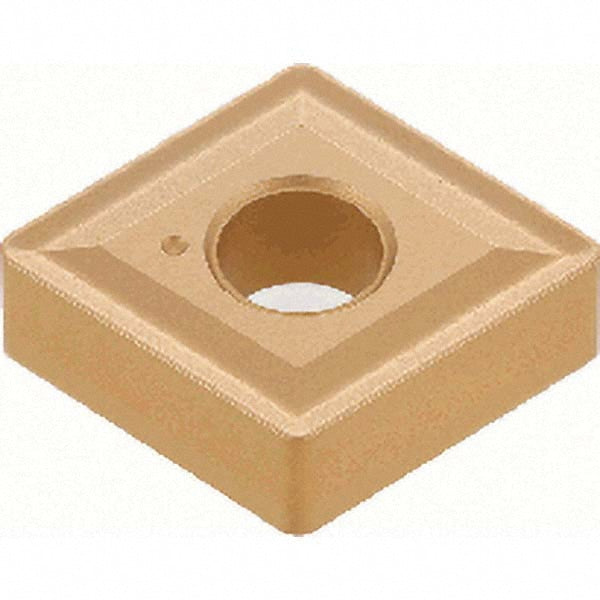

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade T9225, Titanium - Tungaloy 6780993

Tungaloy

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade T9225, Titanium - Tungaloy 6780993

MFR# 6780993ISO/ANSI# CNMG120408Series CNMG

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeT9225
MaterialCarbide
CoatingTitanium

Description

The Tungaloy 6780993 is a carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Industry standard numberCNMG 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6780993
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
