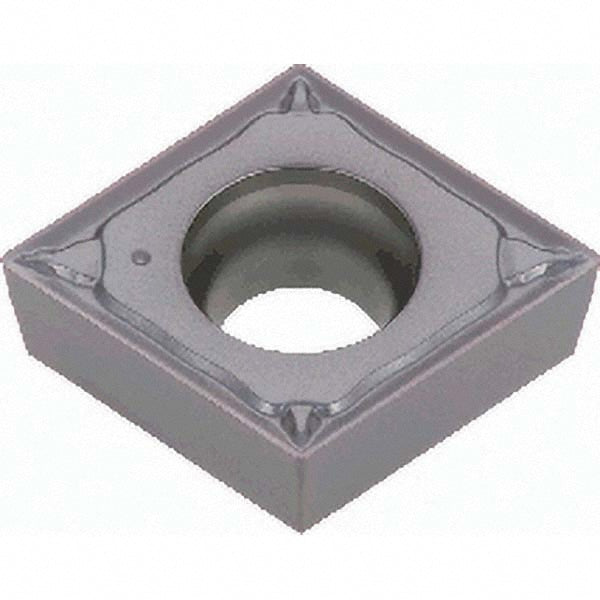

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade T9225, Titanium - Tungaloy 6781044

Tungaloy

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade T9225, Titanium - Tungaloy 6781044

MFR# 6781044ISO/ANSI# CCMT120412Series CCMT-PS

$22.90List $28.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeT9225
MaterialCarbide
CoatingTitanium

Description

The Tungaloy 6781044 is a carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeCCMT433
Ansi size code433
Chip breakerPS
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTitanium
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2170
Included angle80
Industry standard numberCCMT 433 PS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCCMT
Insert thickness in3/16
Iso insert codeCCMT120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number6781044
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
